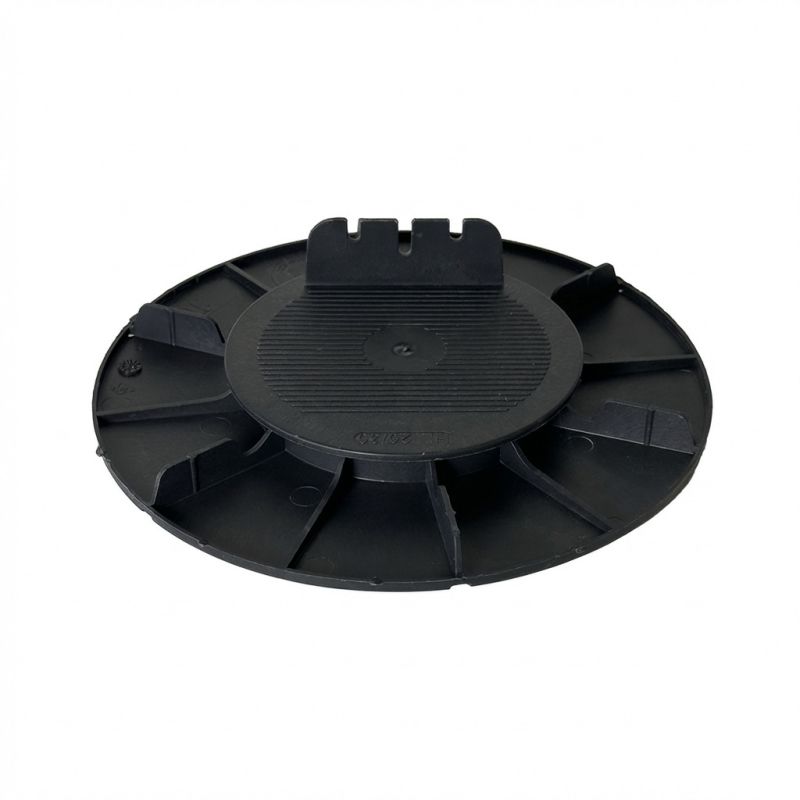

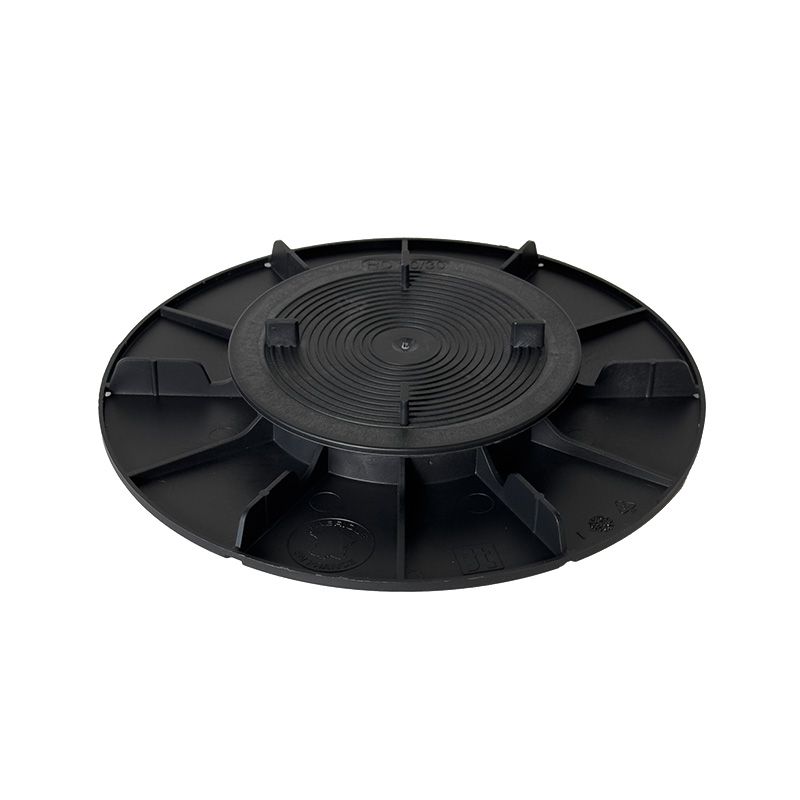

Adjustable wooden terrace pedestal 20/30 mm - ESSENTIEL range - Jouplast
40/60 mm adjustable pedestal for joist. Compatible with wood and composite decking. Resistant to frost, UV, temperature variations from -30° to +60°. Support up to 1 ton load. Complies with DTU 43.1 and 51.4. Made in France. Quick and easy installation.
Expédition des commandes en 24/48h
Livraison offerte dès 500€
Paiement en 3 ou 4x avec Oney
Service client du lundi au vendredi
You might also like
Description
.png)
Jouplast’s 20 to 30 mm adjustable pedestal for wooden or composite terrace
Adjustable pedestals for wooden terrace designed by Jouplast, the French leader in terrace pedestals since 1986. These Essential pedestals for wooden terrace are designed to support wooden or aluminum joists. These pedestals for wooden terrace are adjustable in height from 20 to 30 mm to adapt perfectly to your project. The installation of a wooden terrace on pedestals can be done quickly and easily, without earthworks, structural work or heavy equipment.
The advantages of Jouplast 20/30 mm pedestals for wooden terrace
- Quick and easy to install
- Manual and precise height adjustment thanks to the nut
- Frost and UV resistant
- Allows air to circulate under the structure
- Allows the passage of cables and pipes
- Withstands more than a ton of load
- Complies with DTU 51.4 and 43.1
Tips to install a wooden or composite terrace on pedestals
- Carry out the installation only on leveled ground or an existing concrete slab
- Jouplast pedestals for wooden terraces are designed for pedestrian use only.
- The structure of the terrace must be made with natural wood or aluminum joists and not composite
Steps to install a wooden terrace on pedestals
1/ Prepare the ground
You won’t need to carry out any heavy work, Jouplast terrace pedestals will make your life easier! They are quick and easy to set up, you will be able to build a solid terrace quickly. The wide circular base 208 mm of Jouplast's Essentiel pedestals for wooden terraces provides optimal support for the structure, which is stabilized by it.
However, preparing the ground is a very important step to stabilize and firmly maintain the structure of your terrace. You don’t need to pour a concrete slab. Unlike other terrace laying methods, preparing the ground to install a terrace on pedestals is inexpensive, simpler and faster!
Here is what you need to prepare:
- A cord
- Stakes
- A spirit level
- A shovel
- A meter
- A mason's profile
- Geotextile felt
- Crushed gravel
You only need to follow these 4 to prepare your terrain to install a wooden terrace on adjustable pedestals:
- Dig a hole of 15 cm on the ground;
- Place geotextile felt in it to prevent the growth of weeds;
- Fill the hole with 15 cm of gravel;
- Compact and make sure everything is leveled
2/ Install the pedestals, joists and slabs
Anyone can do itl, the installation of a wooden terrace on Jouplast pedestals is extremely simple to do since all you have to do is put the pedestals on the ground without any fixing. In fact, all you need is to follow these 4 construction steps to build a solid and durable structure:
- Determine the location of the pedestals and their spacing. Once done, place the pedestals on the ground and adjust their height using the nut to adjust them to the millimeter;
- Place the joists on the head of the pedestals: better if they are made of natural wood or aluminium;
- Screw the joists onto the tab provided for this purpose to ensure excellent support of your wooden deck on pedestal;
- Fix the wooden slabs on the joists using screws
Accessories to install a wooden terrace on Jouplast pedestals.
- 10 mm riser to increase the height of the pedestal
- Jouplast joist protection strip to protect the joists from moisture
- Tile spacers to space the wooden or composite boards of your terrace
- Slides rectifier for perfect alignment of the wooden boards
- The FIXEGO fixation kit for invisible fixing of your terrace boards
Technical characteristics
- Complies with DTU 51.4 and 43.1
- Supports more than 1 ton of load
- Frost and UV resistant
- Flange diameter: 208 mm
- Head diameter: 120 mm
- Adjustable height: 20 to 30 mm
Product Details
JOU-IH020030LC10000
3441290000269
4666 Items
Data sheet
- Height
- From 1 to 2 cm
From 2 to 4 cm - Color
- Black
- Material
- Polypropylene
- Guarantee
- 2 years warranty
- Origin
- Manufactured in France
- Conformity
- Compliance with the DTU 43.1 and 51.4
- Resistance
- Resistant to acidic and basic solutions, atmospheric agents, temperatures between -30°C and +60°C
- Load
- Resists the test of crushing with a load superior in 1 ton
- Brand
- Jouplast
- Type
- Adjustable
- Use
- Composite slabs
Wooden slab - Adjustable height
- 20 to 30 mm
- Compatibility with extension
- No
- Qté lot
- 60
- trad_lot
- A batch of
- SH Code
- 39259010
- Country of Origin
- UE
- Best-price
- Yes
- Installation surface
- Loose soil
- Type of setting
- Manual
