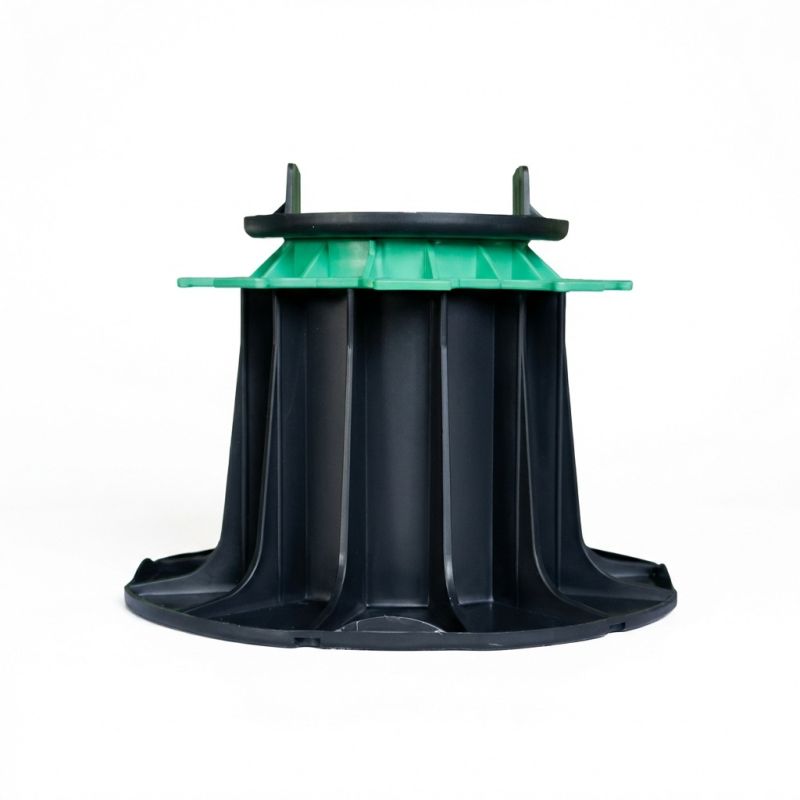

Adjustable wooden terrace pedestal 140/230 mm - ESSENTIEL range - Jouplast
Adjustable pedestal 140/230 for joist. Allows the installation of raised terrace in wood or composite. Complies with DTU 43.1 and 51.4. Supports up to 1 ton of load. Made in France. 10 year warranty.
Expédition des commandes en 24/48h
Livraison offerte dès 500€
Paiement en 3 ou 4x avec Oney
Service client du lundi au vendredi
You might also like
Description
.png)
Adjustable terrace pedestal 140 to 230 mm for Jouplast wooden terrace
The wooden terrace pedestal is designed to create the foundations of wooden or composite terraces. This joist support is adjustable in height from 140 to 230 mm to adapt perfectly to the constraints of your ground. The installation of a wooden terrace on pedestals is done quickly and easily, without earthworks or structural work.
The advantages of the Jouplast 140/230 mm wooden terrace pedestal
- Quick and easy installation
- Manual and precise height adjustment thanks to the green nut
- Frost and UV resistant
- Allows air to circulate under the structure
- Allows the passage of cables and pipes
- Withstands more than a ton of load
- Complies with DTU 51.4 and 43.1
Advice for laying a terrace on a wooden or composite pedestal
- Install only on stabilized ground or an existing concrete slab
- Jouplast wooden terrace pedestals are designed for pedestrian use only.
- The structure of the terrace must be made with natural wood or aluminum joists and not composite
The steps for laying a wooden terrace on pedestals
1/ Ground preparation
The pedestal for wooden terrace allows you to make a wooden or composite slat terrace on any type of ground provided that it is stabilized. Its wide circular base of 208 mm allows optimal support of the structure which is stabilized.
Preparing the ground is a mandatory step to stabilize and firmly maintain the structure of your terrace. However, there is no need to pour a concrete slab, unlike other terrace laying methods. While laying on pedestals the preparation of the ground is inexpensive, simpler and faster!
Equip yourself with the following:
- A cord
- Stakes
- A spirit level
- A shovel
- A tape measure
- A mason's box screed
- A geotextile film
- Crushed gravel
4 steps are enough to prepare your land to accommodate a wooden terrace on adjustable pedestals:
- Dig the ground for 15 cm;
- Place a geotextile felt there to eradicate the growth of weeds;
- Fill the hole with a 15 cm layer of gravel;
- Compact and make sure everything is level.
2/ Lay the pedestals, joists and decking boards
Laying a wooden terrace on Jouplast pedestals is extremely easy to do since it suffices to lay them on the ground without any fixings. Only 4 construction steps are enough to enjoy a solid and durable structure:
- Determine the location of the pedestals and their spacing. Once done, place the pedestals on the ground and adjust the height using the nut for an adjustment to the millimeter;
- Place the joists on the head of the pedestals: necessarily in natural wood or aluminium;
- Screw the joists onto the strip provided for this purpose to ensure excellent support for your wooden deck on pedestal;
- Fix the wooden boards on the joists using screws.
Accessories for laying wooden decks on Jouplast pedestals
- 10 mm and 60 mm risers to increase the final height of the pedestal
- The Jouplast waterproofing strip to protect the joists of the terrace
- Board spacers to obtain regular spacing between boards
- The decking board clamp for perfect alignment of the wooden boards
- The FIXEGO fixing kit to fix the boards invisibly
Technical characteristics
- Complies with DTU 51.4 and 43.1
- Load resistance greater than 1 ton
- Frost and UV resistant
- Flange diameter: 208 mm
- Head diameter: 120 mm
- Adjustable height: 140 to 230 mm
Product Details
JOU-IH140230LS10000
3441290000214
1401 Items
Data sheet
- Height
- From 12 to 15 cm
From 15 to 23 cm - Color
- Black
- Material
- Polypropylene
- Guarantee
- 2 years warranty
- Origin
- Manufactured in France
- Conformity
- Compliance with the DTU 43.1 and 51.4
- Resistance
- Resistant to acidic and basic solutions, atmospheric agents, temperatures between -30°C and +60°C
- Load
- Resists the test of crushing with a load superior in 1 ton
- Brand
- Jouplast
- Type
- Adjustable
- Use
- Composite slabs
Wooden slab - Adjustable height
- 140 to 230 mm
- Qté lot
- 40
- trad_lot
- A batch of
- SH Code
- 39259010
- Country of Origin
- UE
- Best-price
- Yes
- Installation surface
- Loose soil
- Type of setting
- Manual
