Adjustable terrace pedestal 60/90 for wooden post - YEED (ex Rinno)
Reference :

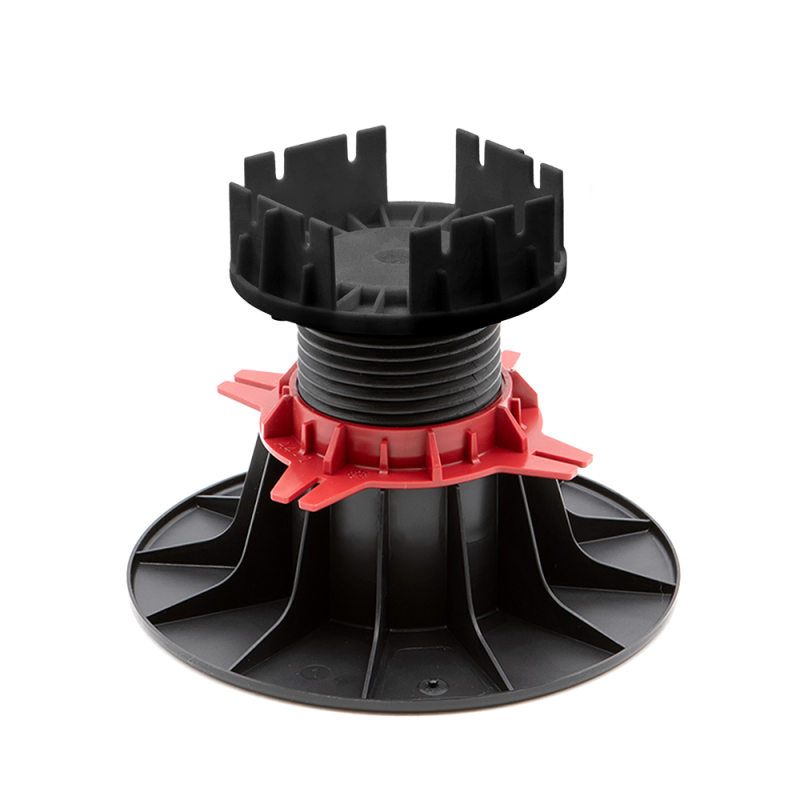

Adjustable terrace pedestal from 60 to 90 mm for wooden post 90 x 90 mm - YEED (ex Rinno)
The terrace pedestal for wooden post makes it possible to raise raised wooden structures such as pergolas, bungalows or even terraces on stilts. This pvc pedestal is adjustable from 60 to 90 mm and accommodates a 90 x 90 mm wooden post. Your wildest projects come to life through ease thanks to the adjustable terrace pedestal for wooden posts!
The advantages of the 60 to 90 mm adjustable terrace pedestal for wooden posts by YEED (formerly Rinno)
- Quick and easy installation, without major works or fixing
- Manual height adjustment thanks to the red adjustment ring
- Four tabs designed for screwing the wooden post to the pedestal
- Allows good ventilation of the structure and the evacuation of rainwater
- Base designed to ensure proper drainage of rainwater
- Compatible with wood and composite boards
Prerequisites: draw up the layout plan
Before getting started with the construction of your terrace on stilts, it is necessary to draw up a layout plan which contains the shape of your terrace, its dimensions but also the material necessary for its building: pvc studs for wooden posts, possibly other decking joists, joists, wooden posts 90 x 90 mm, joists, wooden slats. The objective here is to plan and calculate the number of materials that are required.
Ground preparation
Laying a wooden deck on wooden posts requires a stable ground. Thus, we prefer a laying on a concrete slab. If you do not have a concrete screed, it will be mandatory to go through a ground preparation to stabilize your surface.
On a concrete paving or an existing terrace
In this case, installing terrace pedestals for wooden posts does not require additional preparation since your surface is stable and level. Go directly to the installation of adjustable terrace pedestals for wooden posts.
On a rough ground
This step must be carried out if your ground is not loose and stable. The pedestal for wooden post needs to be firmly held to the ground in order to guarantee a solid and secure raised terrace. If your land is raw, land preparation is mandatory. This is to stabilize your floor and to guarantee the safety of your wooden construction.
1/ Tools and materials needed for ground preparation
Few tools are needed to carry out the ground preparation earthwork. Here is the list of everything you need:
- A cord
- Stakes
- A spirit level
- A shovel
- A tape measure
- A mason's rule
- A geotextile film
- Crushed gravel
- Roller compactor
2/ How to prepare the ground
To keep your terrace on stilts as long as possible, only 5 steps are necessary:
- Mark out your future terrace and dig 15 cm deep;
- Add a geotextile felt to prevent the growth of weeds between the wooden boards;
- Cover with crushed gravel: 0/60 mm over 10 cm and 0/4 mm over the top 5 cm;
- Compact everything to obtain a flat and loose surface;
- Check the flatness of the surface with a spirit level.
Steps for laying a wooden deck on pedestals for YEED posts (formerly Rinno)
1/ Tools and materials needed to install your wooden deck on post pedestals
For this step, you will need a little more material, namely:
- A bracket
- A tape measure
- A spirit level
- A drill driver
- A jigsaw/radial saw
- A hammer
- A large ruler
- A cord
- Stakes
- Your wooden terrace pedestals for YEED posts
- 90 x 90 mm posts
- Wooden or aluminum joists
- Decking boards
- Special wooden screws
2/ Accessories for laying a wooden terrace on pedestal for YEED post (formerly Rinno)
Some accessories will be useful to develop your terrace on stilts.
- Extensions 60 and 110 mm to increase the height of terrace pedestals for wooden posts;
- The joist protection strip to protect your foundations from humidity;
- Plank spacers for perfect spacing between your wooden boards;
- The EDMA board straightener to make your wooden boards straight and thus facilitate their installation;
- The invisible fixing kit to fix the boards without visible screws
3/ Lay the posts
Once the ground is loose and stable, the pvc pedestals can be placed on the ground without fixing. For a perfect installation, follow your layout plan previously drawn up so as to accommodate the structure without the slightest difficulty.
Once installed, it is necessary to adjust the height of each pedestal to obtain a stable wooden pergola that meets the needs of the site. This adjustment is made using the red adjustment ring on the stud for wooden post.
4/ Install and fix the posts

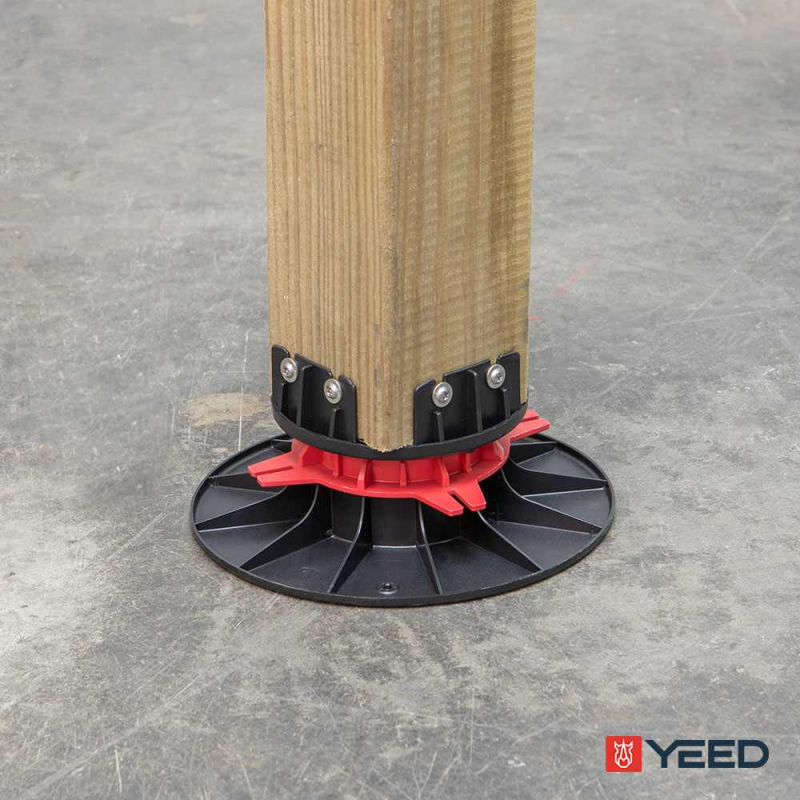

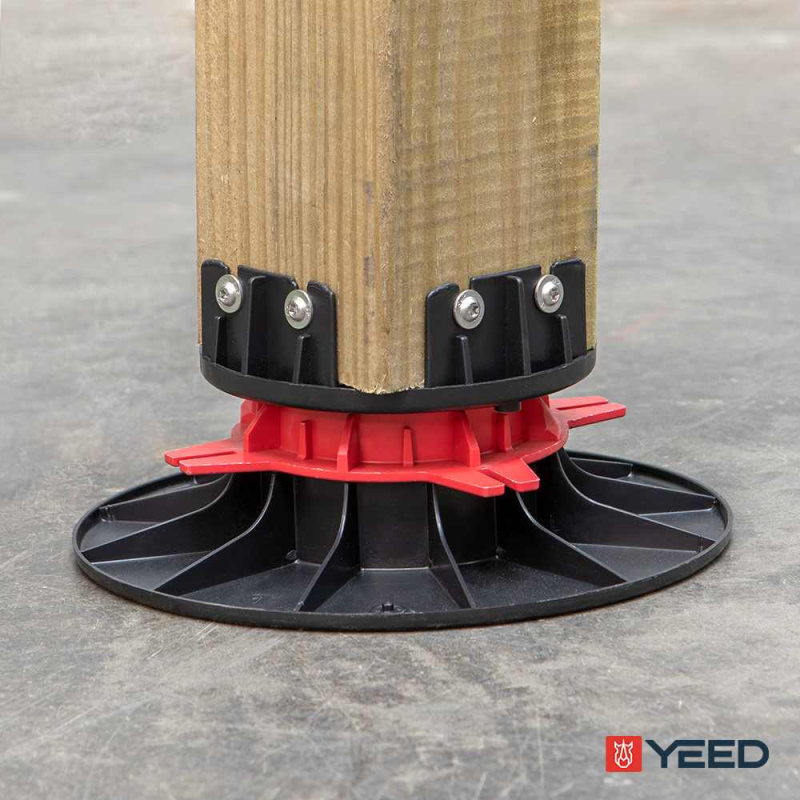

The wooden post can be positioned at the head of the pedestal. The latter must of course be screwed by 8 screws (2 for each side) to guarantee a solid and secure construction. This step is carried out through the lugs provided for this purpose, located on the 4 sides of the head of the pedestal. All that remains is to add the necessary elements to build your wooden structure!
5/ Lay and fix the joists
Your wooden deck on stilts requires wooden joists which will serve as the foundations for your wooden deck on pvc pedestals. As for a wooden terrace on classic pedestals, your joists will support your wooden coating. Note, it is mandatory to coordinate the essence of your joists with that of your coating. Thus, natural or composite wood, the choice is yours but make sure you coordinate everything as a whole.
6/ Lay and fix the wooden boards
- Lay the wooden board coating while starting against a wall. Do not forget to offset 5 mm from the wall to obtain the expansion joint;
- Place the boards perpendicular to the joists;
- Screw the boards 20 mm from the edge with special decking screws.
Technical characteristics
- Complies with DTU 43.1 and 51.4
- Frost and UV resistant
- Supports more than 1 ton of load
- Height adjustable from 60 to 90 mm
- Base diameter: 200 mm
- Head diameter: 120 mm
- Strip height: 30 mm
- Recycled and recyclable product
- Made in France
The installation of a terrace on a pedestal is the easiest and quickest method to set up: follow the assembly steps and build your terrace in less than 3 days!
step 1Determine the required spacing, place the pedestals on the ground, adjust them and check everything with a spirit level.
step 2As soon as the installation is level, place the joists in front of the pin located on the head of the pedestals.
step 3Then screw the joists onto the pin of the stud provided for this purpose. This allows for good maintenance.
step 4Finally, attach the wooden slats to the joists using a screwdriver and wood screws.
Model :
Adjustable terrace pedestal 60/90 for wooden post - YEED (ex Rinno)
| Color | Black |
|---|---|
| Material | Polypropylene |
| Warranty | 10 years warranty |
| Origin | Manufactured in France |
| Resistance | Resistant to acidic and basic solutions, atmospheric agents, temperatures between -40°C and +60°C |
| Load | Resists the test of crushing with a load superior in 1 ton |
| Brand | YEED (Ex Rinno) |
| Use | Support for a 90 x 90 mm wooden post |
| Adjustable height | 60 to 90 mm |
